Unity3D研究院GPU Instancing测试

GPU instancing 很早就支持手机了（Android只支持Opengl ES 3.0），但是我一直不知道将它应用到哪里，刚好最近在调研这个我对它又重新测试了一下。

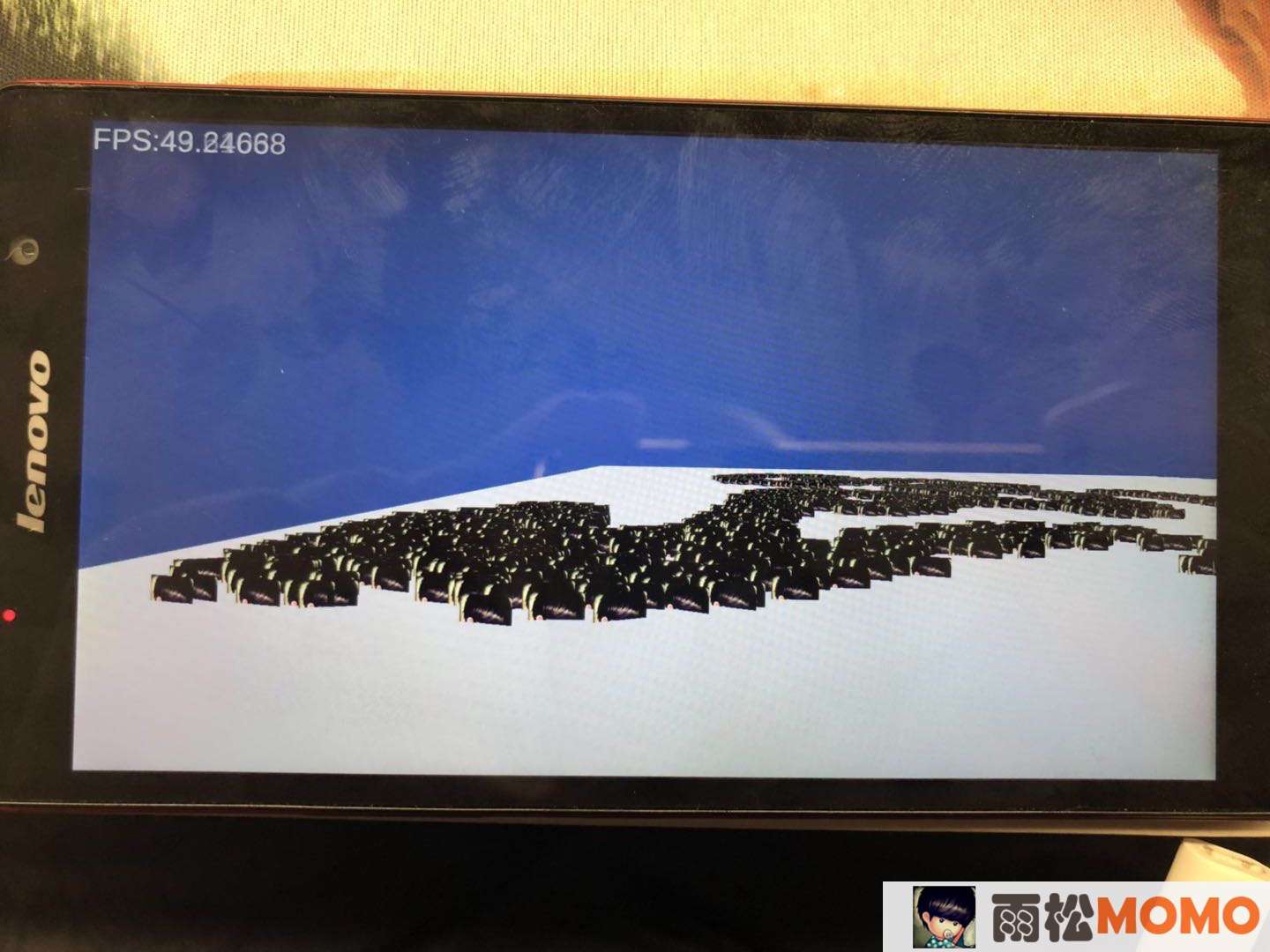

如果是不动的物体勾选static静态合并批次（40-50帧率）

Unity3D研究院GPU Instancing测试 - 雨松MOMO程序研究院 - 1

自定义Shader中勾选Enable GPU Instancing

Unity3D研究院GPU Instancing测试 - 雨松MOMO程序研究院 - 2

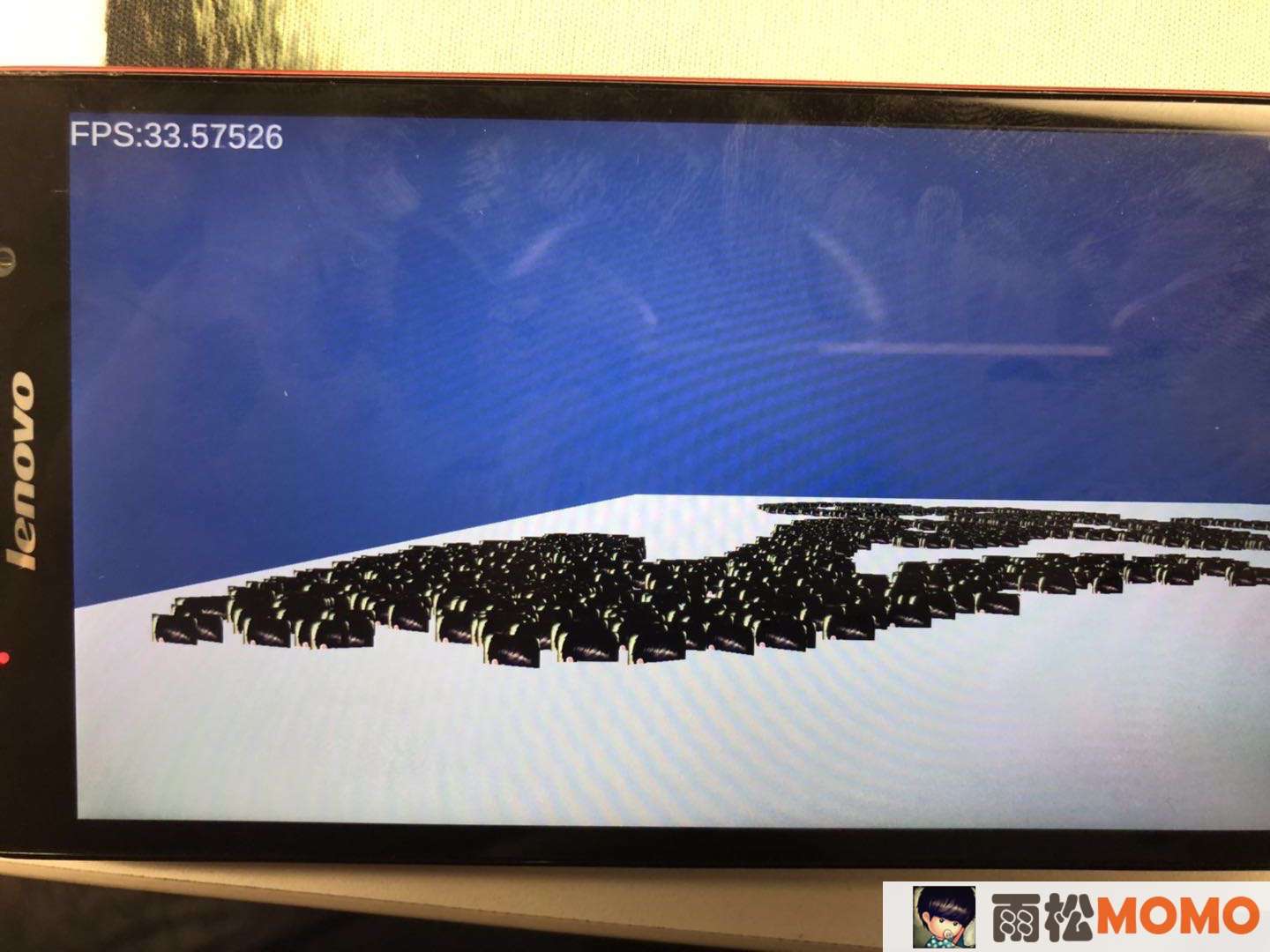

帧率竟然还不如静态合批次（帧率 30-40）

Unity3D研究院GPU Instancing测试 - 雨松MOMO程序研究院 - 3

自定义Shader

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69

Shader "SimplestInstancedShader1"
{
    Properties
    {
        _Color ("Color", Color) = (1, 1, 1, 1)
        _MainTex ("Texture", 2D) = "white" {}

    }

    SubShader
    {
        Tags { "RenderType"="Opaque" }
        LOD 100

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #pragma multi_compile_instancing
            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
                UNITY_VERTEX_INPUT_INSTANCE_ID
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
                UNITY_VERTEX_INPUT_INSTANCE_ID // necessary only if you want to access instanced properties in fragment Shader.
            };

            UNITY_INSTANCING_BUFFER_START(Props)
                UNITY_DEFINE_INSTANCED_PROP(float4, _Color)
            UNITY_INSTANCING_BUFFER_END(Props)


            sampler2D _MainTex;
            float4 _MainTex_ST;

            v2f vert(appdata v)
            {
                v2f o;

                UNITY_SETUP_INSTANCE_ID(v);
                UNITY_TRANSFER_INSTANCE_ID(v, o); // necessary only if you want to access instanced properties in the fragment Shader.

                o.vertex = UnityObjectToClipPos(v.vertex);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);

                return o;
            }

            fixed4 frag(v2f i) : SV_Target
            {
                UNITY_SETUP_INSTANCE_ID(i); // necessary only if any instanced properties are going to be accessed in the fragment Shader.

                return tex2D (_MainTex, i.uv) * UNITY_ACCESS_INSTANCED_PROP(Props, _Color);
            }
            ENDCG
        }
    }
}

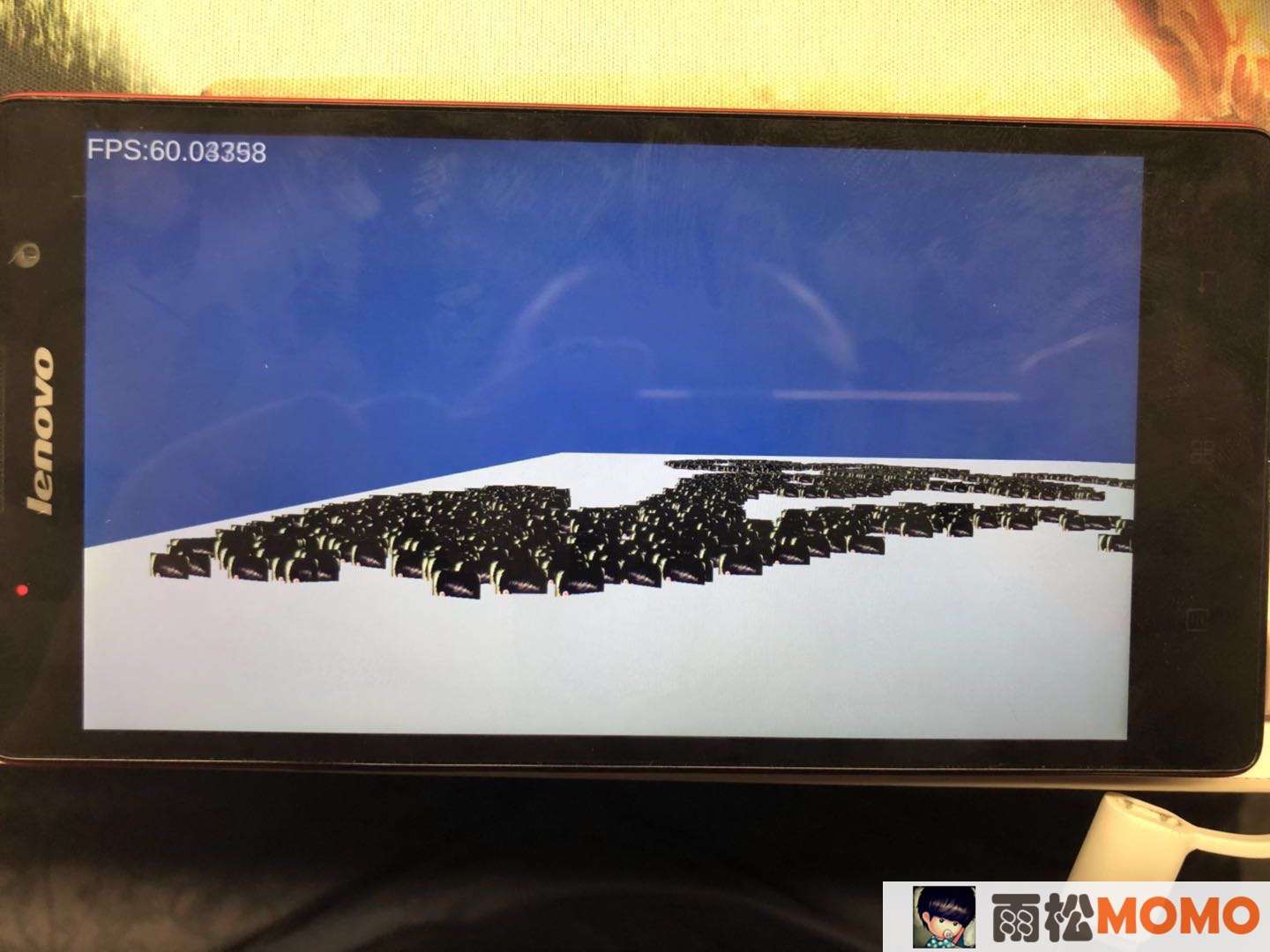

所以，静态不动的物体就没必要用上面的方法了，于是我又测试了Graphics.DrawMeshInstanced()方法，终于满意了。（稳定60帧）

Unity3D研究院GPU Instancing测试 - 雨松MOMO程序研究院 - 4

Graphics.DrawMeshInstanced()方法不需要游戏对象以及游戏组件的额外开销，在Update()方法中一气呵成，不过它也有限制，最多可以画1023个。
还有个方法是Graphics.DrawMeshInstancedIndirect()它没有画多少的限制，而且更加灵活，我也搞了好一会儿才在游戏中跑起来，后来才知道它不能再手机上用，只有PC上可以.

在shader中接收位置 颜色 矩阵

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71

Shader "Instanced/InstancedIndirectSelection"
{

Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
    }

SubShader
{
Tags{ "RenderType" = "Opaque" }
LOD 100

Pass
{
CGPROGRAM
#pragma vertex vert
#pragma fragment frag
#pragma target 4.5

#include "UnityCG.cginc"

StructuredBuffer<float4> positionBuffer;
StructuredBuffer<float4> colorBuffer;
StructuredBuffer<float4x4> matrix4x4Buffer;

struct appdata
{
fixed4 color : COLOR;
    float4 vertex : POSITION;
    float4 texcoord : TEXCOORD0;
};


struct v2f
{
float4 color: COLOR;
float4 vertex : SV_POSITION;
float2 texcoord : TEXCOORD0;
};

sampler2D _MainTex;
            float4 _MainTex_ST;

v2f vert(appdata v, uint instanceID : SV_InstanceID)
{
float4 data = positionBuffer[instanceID];
float4x4 materix = matrix4x4Buffer[instanceID / matrix4x4Buffer.Length];
float3 worldPosition = data.xyz + mul(materix,v.vertex.xyz * data.w);
v2f o;
o.vertex = mul(UNITY_MATRIX_VP, float4(worldPosition, 1.0f));
o.texcoord = TRANSFORM_TEX(v.texcoord, _MainTex);
o.color = colorBuffer[instanceID];
return o;
}

fixed4 frag(v2f i) : SV_Target
{
return tex2D (_MainTex, i.texcoord) * i.color;

}

ENDCG
}
}
}


在代码中将位置 颜色 矩阵传进去就行了

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88

using UnityEngine;
public class InstancedIndirectExample : MonoBehaviour
{
    public int instanceCount = 100000;
    public Mesh instanceMesh;
    public Material instanceMaterial;
    private ComputeBuffer positionBuffer;
    private ComputeBuffer argsBuffer;
private ComputeBuffer colorBuffer;
private ComputeBuffer matrix4x4Buffer;


    private uint[] args = new uint[5] { 0, 0, 0, 0, 0 };
    void Start()
{
        argsBuffer = new ComputeBuffer(1, args.Length * sizeof(uint), ComputeBufferType.IndirectArguments);
        UpdateBuffers();
    }

    void Update()
{
      //  instanceMaterial.SetBuffer("positionBuffer", positionBuffer);
        Graphics.DrawMeshInstancedIndirect(instanceMesh, 0, instanceMaterial, new Bounds(Vector3.zero, new Vector3(100.0f, 100.0f, 100.0f)), argsBuffer);
    }
    void UpdateBuffers()
{
if ( instanceCount < 1 ) instanceCount = 1;

        // Positions & Colors
        if (positionBuffer != null) positionBuffer.Release();
if (colorBuffer != null) colorBuffer.Release();
if (matrix4x4Buffer != null) matrix4x4Buffer.Release();


        positionBuffer = new ComputeBuffer(instanceCount, 16);
colorBuffer = new ComputeBuffer(instanceCount, 4*4);
matrix4x4Buffer = new ComputeBuffer(instanceCount,16);


        Vector4[] positions = new Vector4[instanceCount];
Vector4[] colors = new Vector4[instanceCount];
Matrix4x4[] materix4X4 = new Matrix4x4[instanceCount];

        for (int i=0; i < instanceCount; i++)
{
positions [i] = new Vector4 (i, 0f, 0f, 1f);
colors[i] = new Vector4(  1f,  1f,  1f, 1f );
materix4X4[i] = Matrix4x4.TRS (positions [i], Quaternion.Euler (0F, 0F, 0F), Vector3.one);
        }

        positionBuffer.SetData(positions);
colorBuffer.SetData(colors);
matrix4x4Buffer.SetData (materix4X4);

instanceMaterial.SetBuffer("positionBuffer", positionBuffer);
instanceMaterial.SetBuffer("colorBuffer", colorBuffer);
instanceMaterial.SetBuffer("matrix4x4Buffer", matrix4x4Buffer);

        // indirect args
        uint numIndices = (instanceMesh != null) ? (uint)instanceMesh.GetIndexCount(0) : 0;
        args[0] = numIndices;
        args[1] = (uint)instanceCount;
        argsBuffer.SetData(args);
    }

    void OnDisable()
{
        if (positionBuffer != null) positionBuffer.Release();
        positionBuffer = null;

if (colorBuffer != null) colorBuffer.Release();
        colorBuffer = null;

        if (argsBuffer != null) argsBuffer.Release();
        argsBuffer = null;

if (matrix4x4Buffer != null) matrix4x4Buffer.Release();
matrix4x4Buffer = null;

    }
}


如果是发生移动的物体顶点数量在900以内会动态合并批次，如果需要支持更多的顶点GPU Instaning的优势就更明显了。 目前来看草、石头、植被、比较合适用它。
